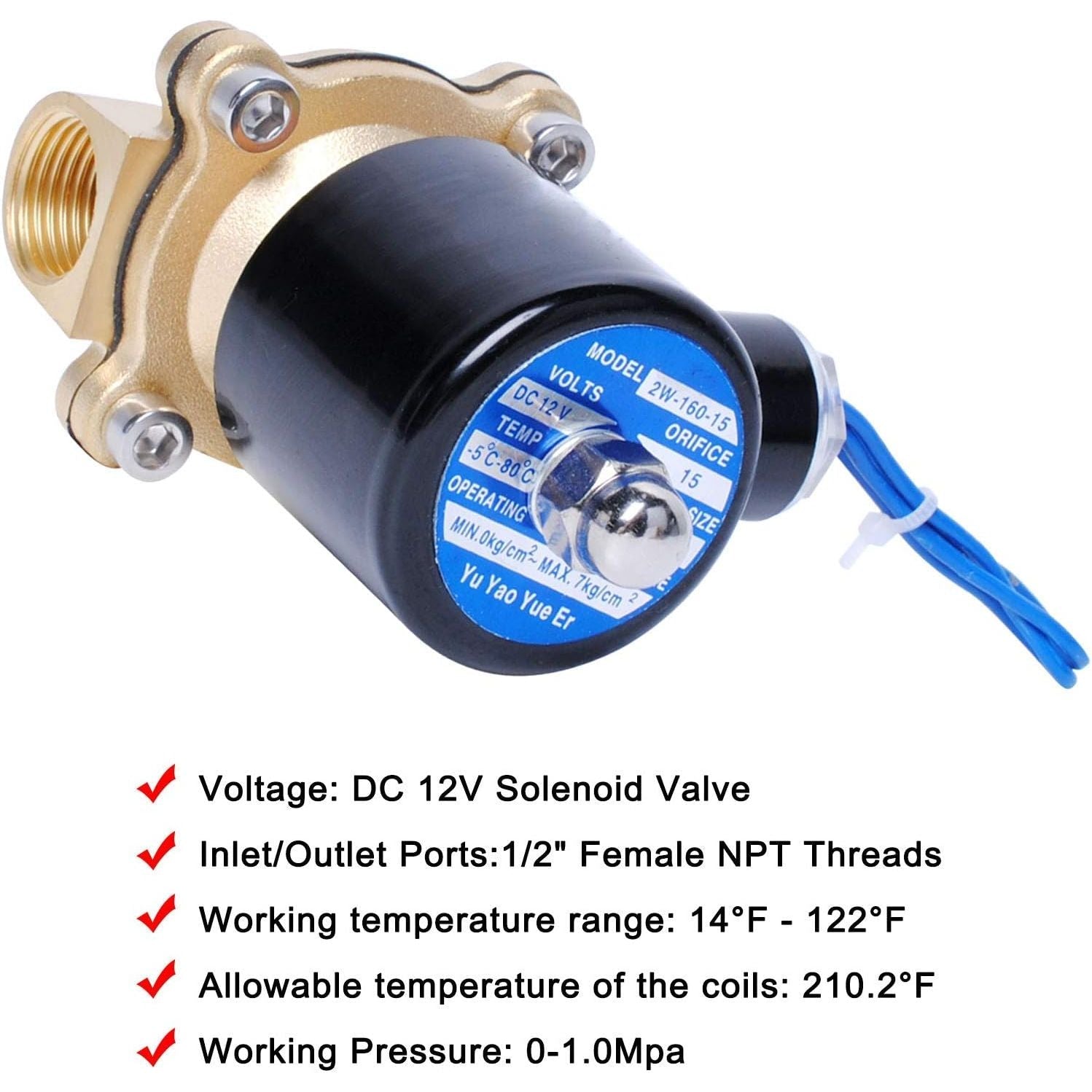

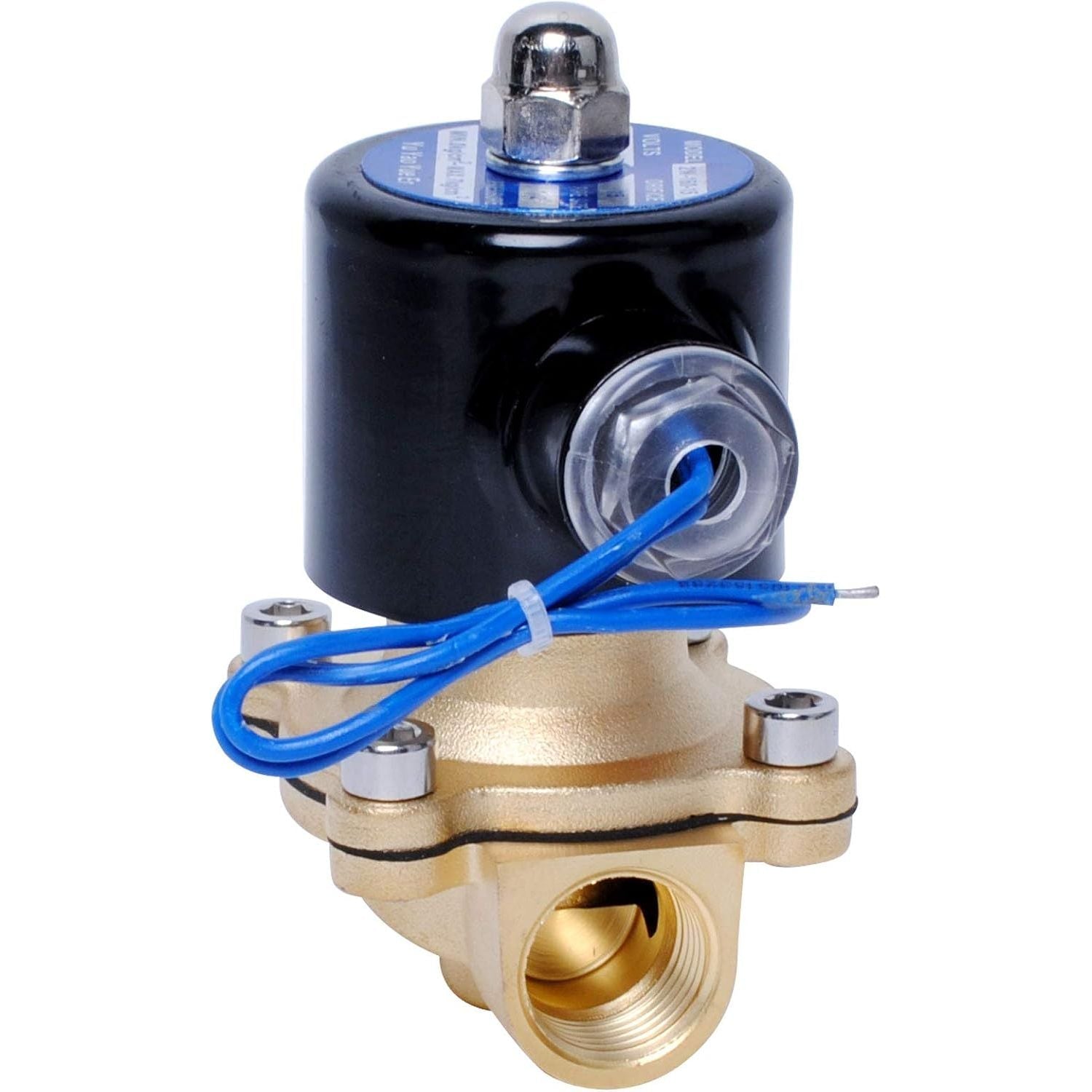

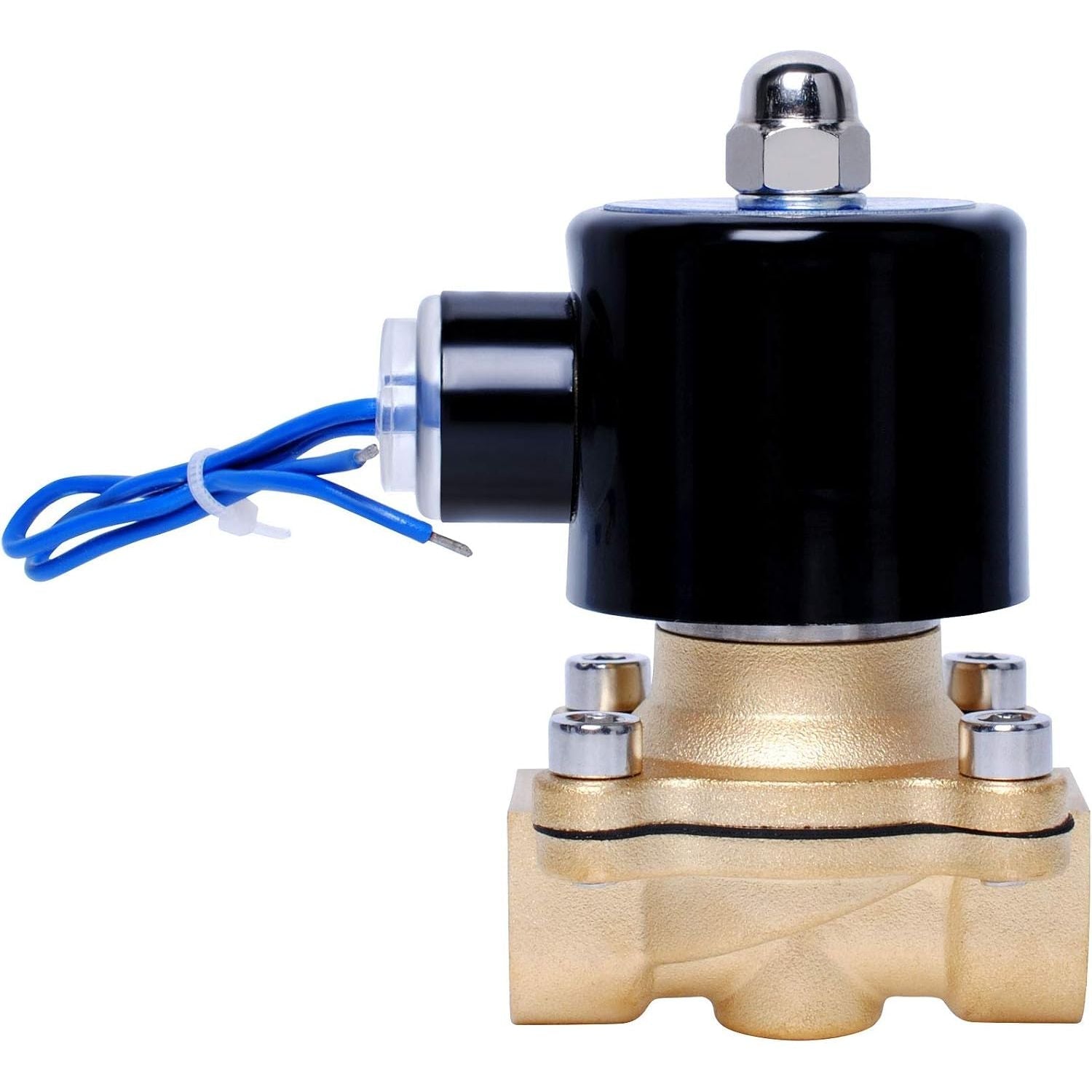

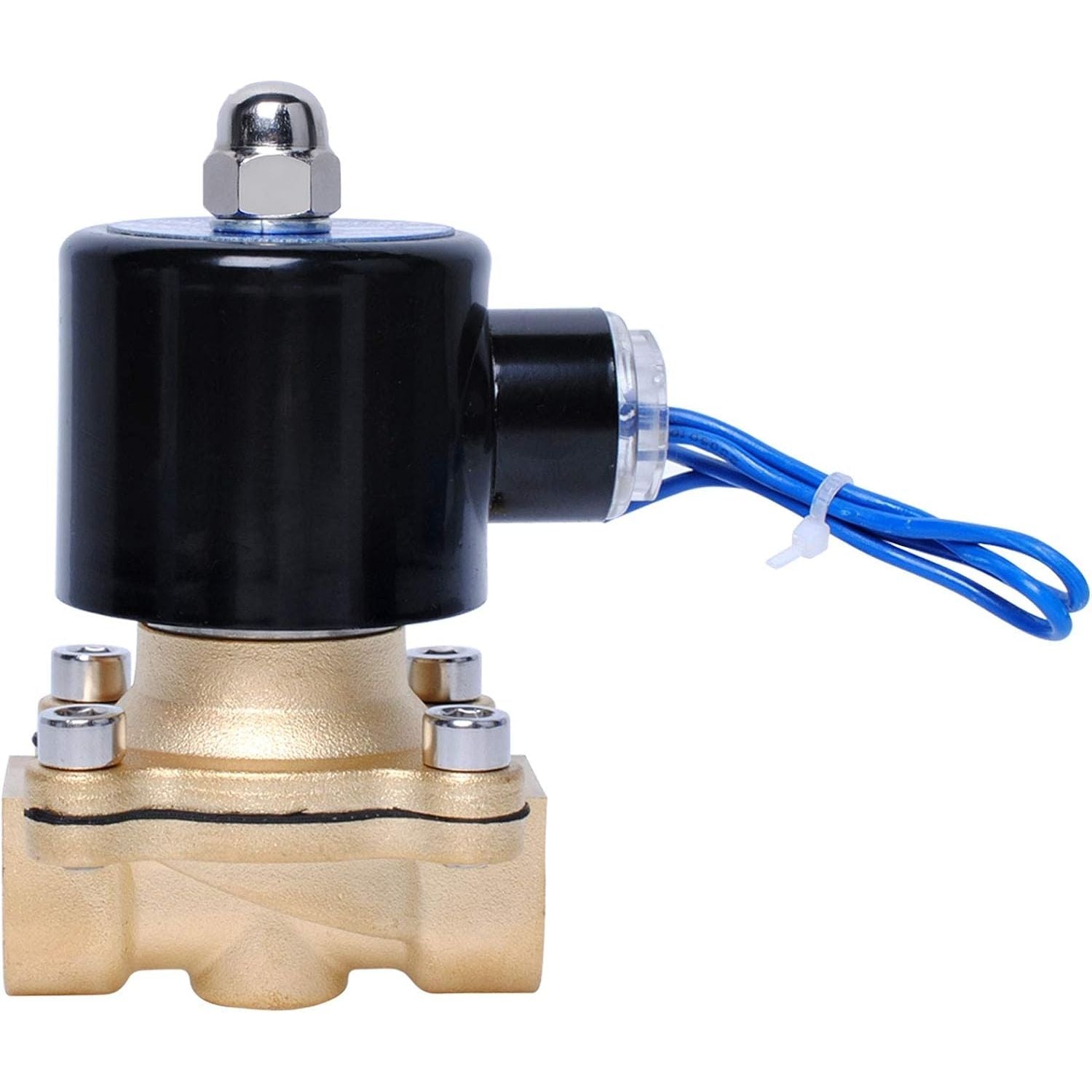

Normally closed electric solenoid valve with a brass body, 12V DC coil, and 1/2-inch female NPT inlet and outlet ports. The valve stays closed without power and opens when energized. Suitable for compatible water, air and oil systems when installed to the system manufacturer's requirements.
- Voltage: 12V DC; normally closed operation.
- Port size: 1/2-inch female NPT on both sides.
- Listed working pressure: 0–1.0 MPa; listed working temperature: 14–122°F.

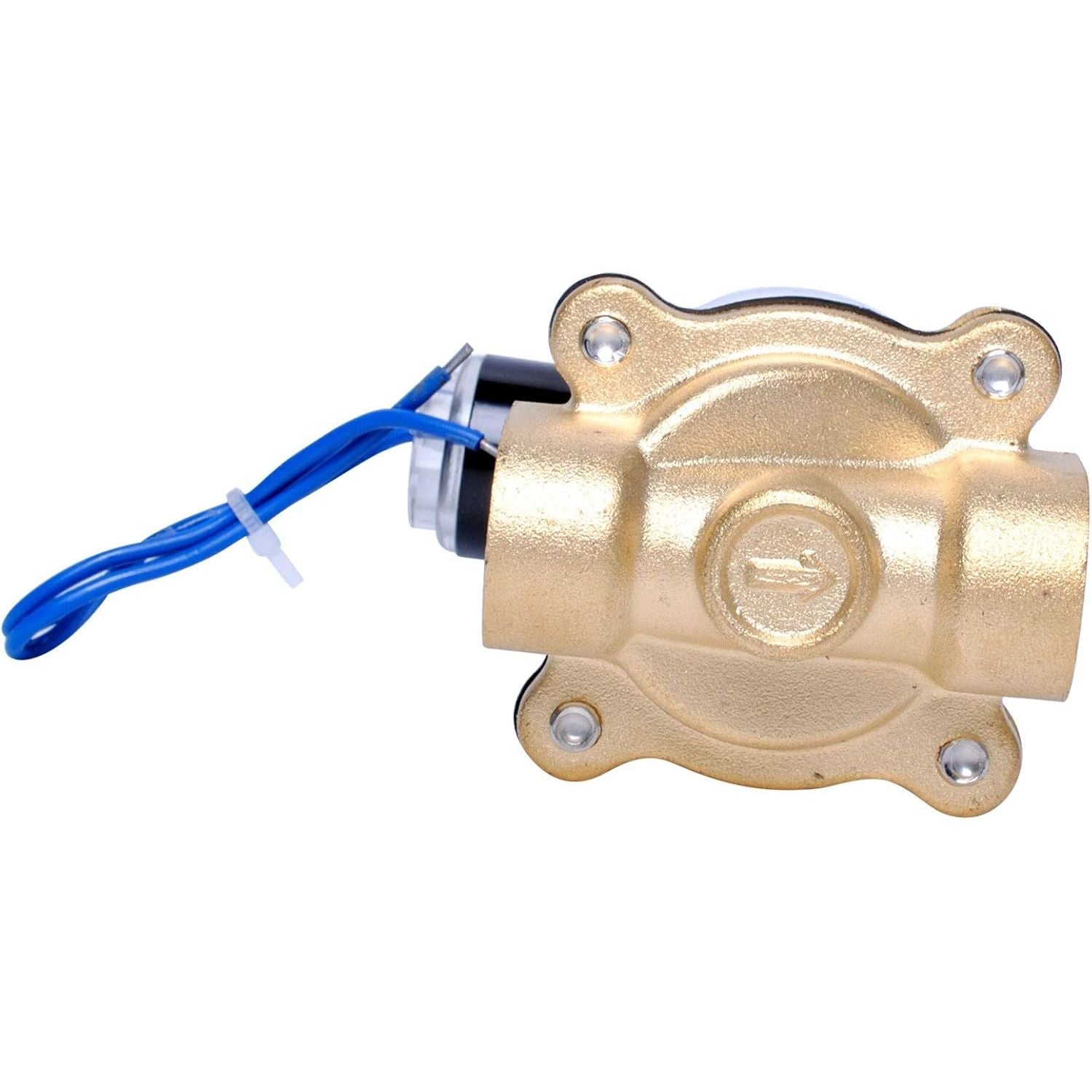

- Install in the direction of the flow arrow using suitable thread seal tape; keep piping clean.
- Source guidance limits continuous energization to one hour per cycle.
New item. One valve per pack. Consolidated SKUs J7696 and J7704; Freshly batch 202-L88S15. Verify media, pressure, power supply and local installation requirements before use.
