Hoypeyfiy replacement stator for compatible Mercury carbureted two-stroke outboard engines.
- References: 86617A20, 86617A2, 86617A3, 86617A5, 86617A9, 18-5864 and 174-6617K1.
- Listed for compatible 6, 8, 9.9 and 10 HP applications 1986–1996, and 15, 18, 20 and 25 HP applications 1988–1997.
- Source serial reference: 0A197112–0G289100; verify model and original stator reference.

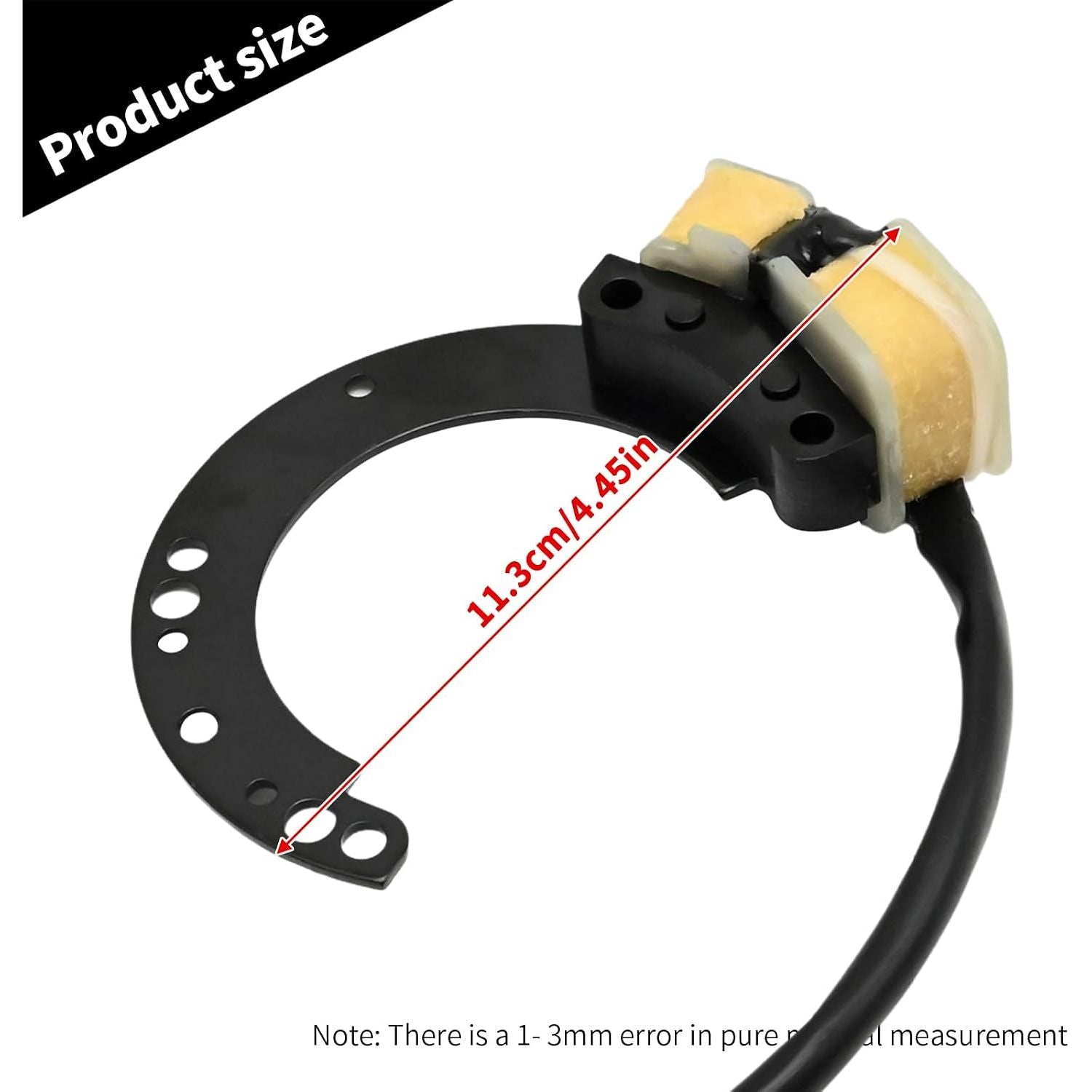

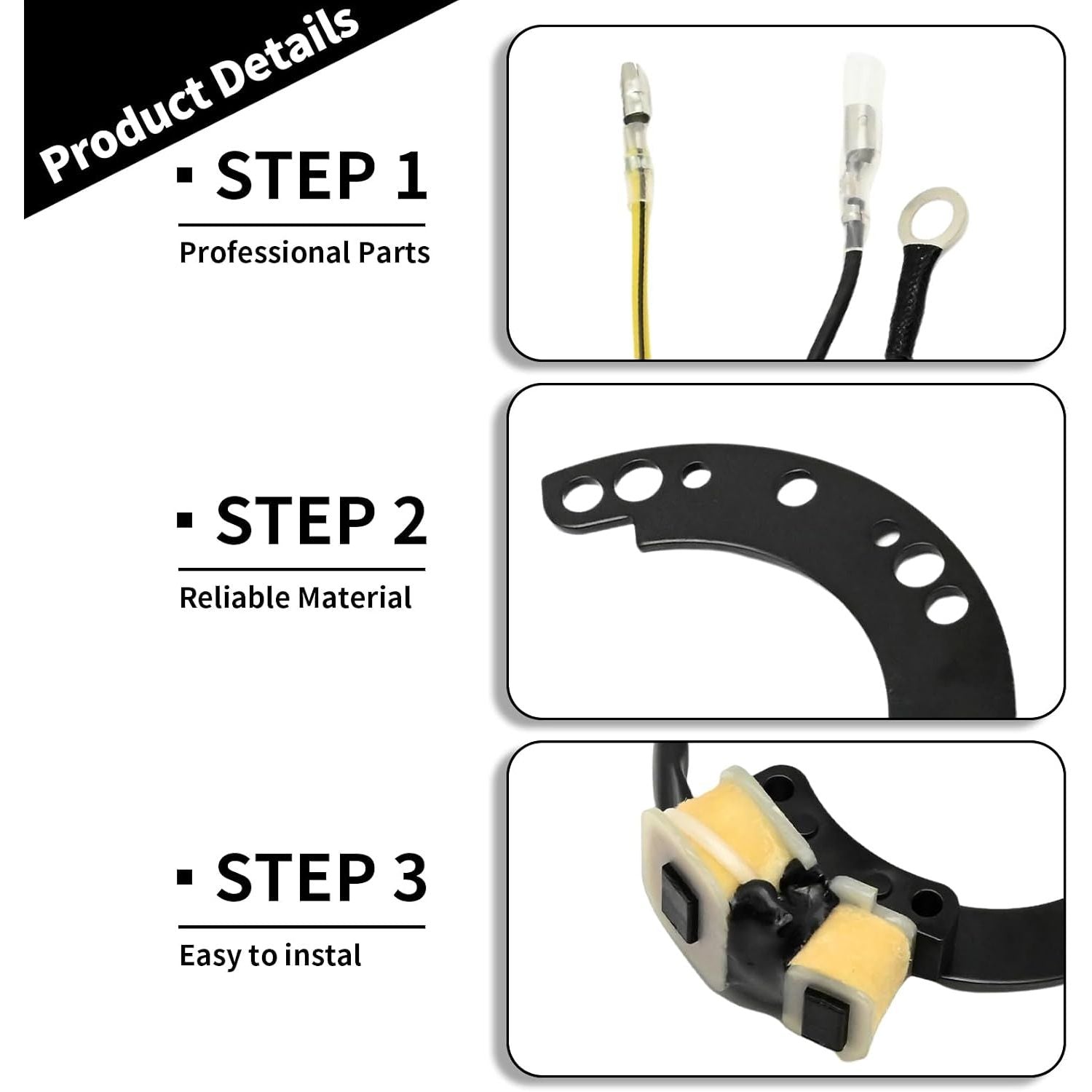

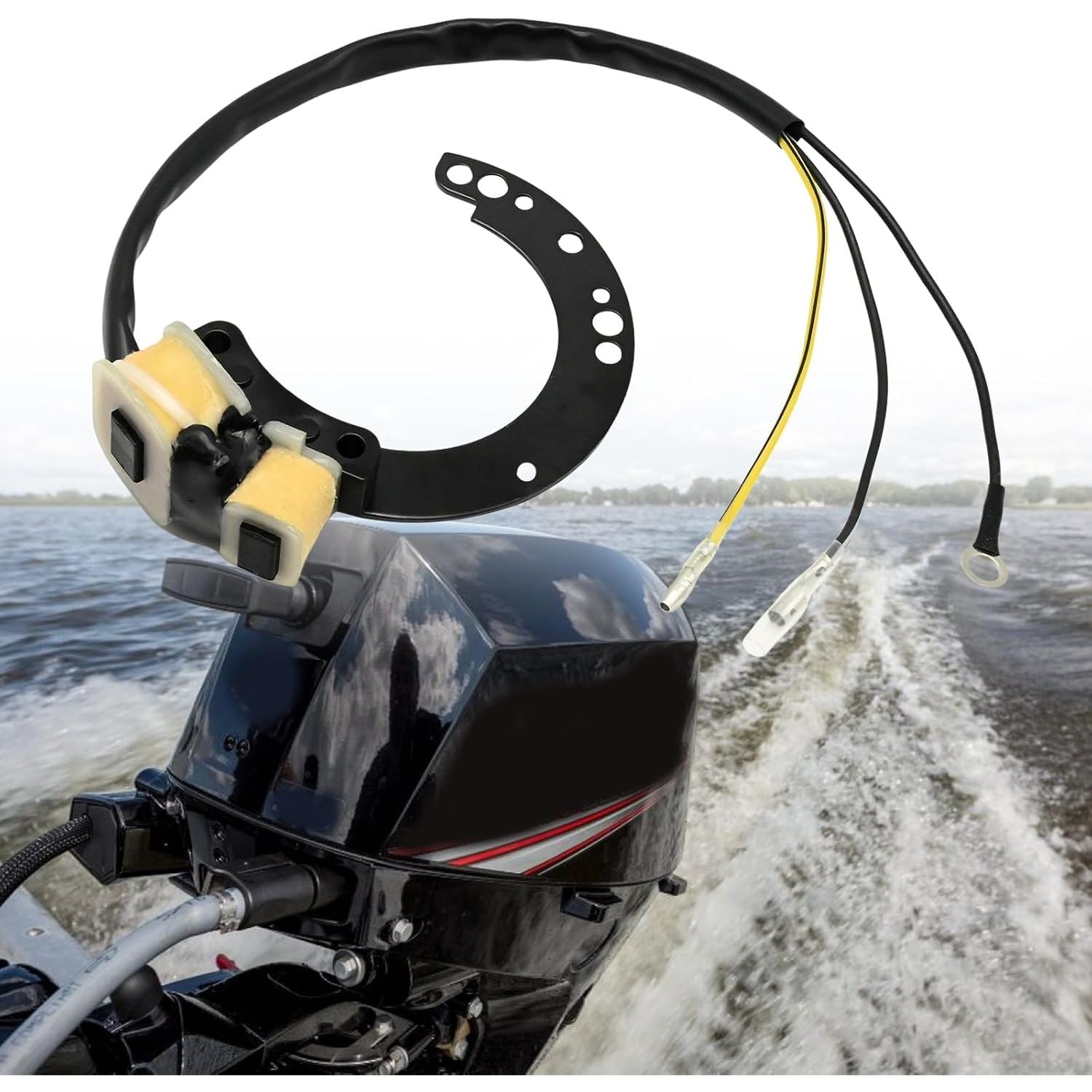

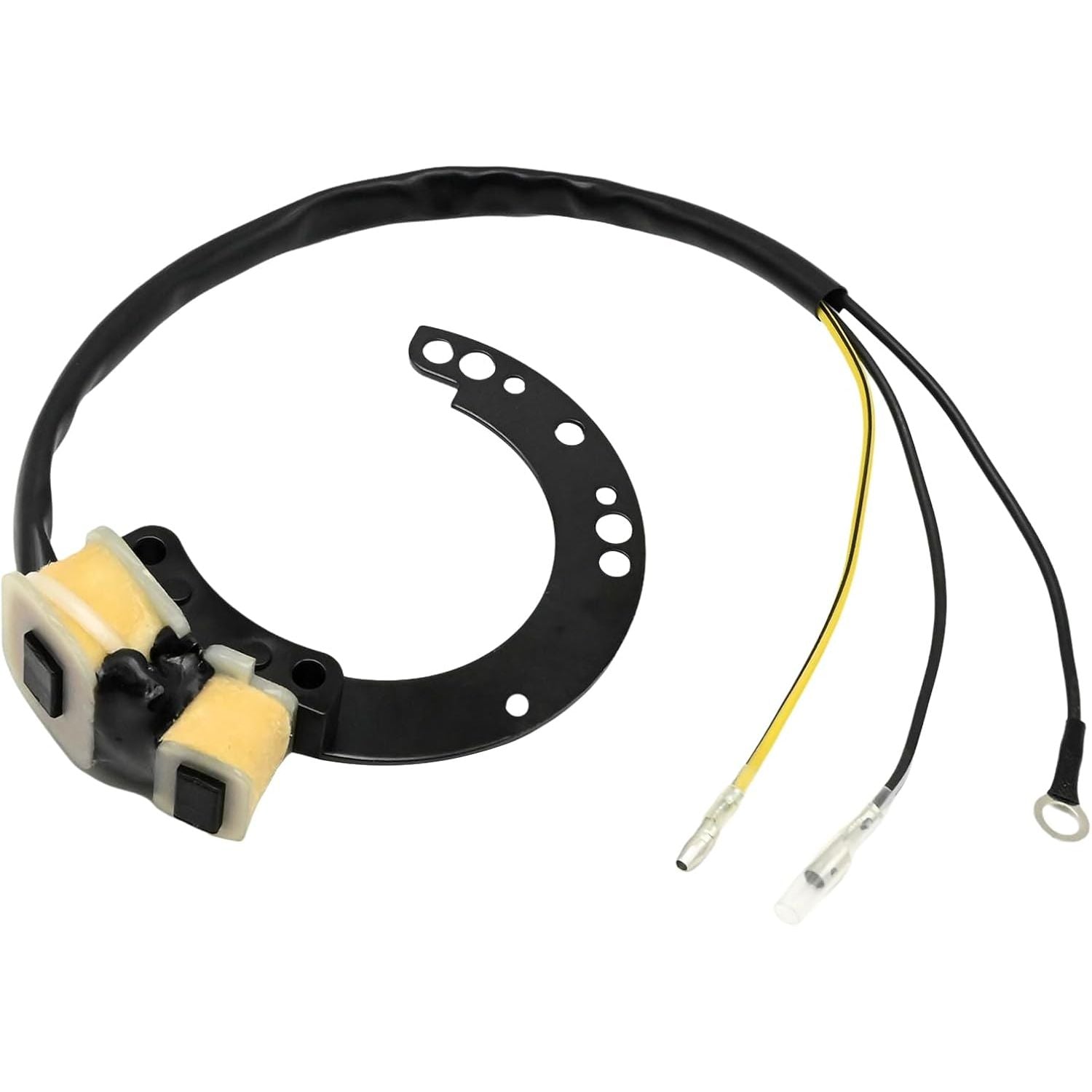

- Assembly has two coils, a curved mounting plate and attached leads with two bullet terminals and one ring terminal.
- Includes one stator. Match mounting holes, wiring and original reference before ordering.
