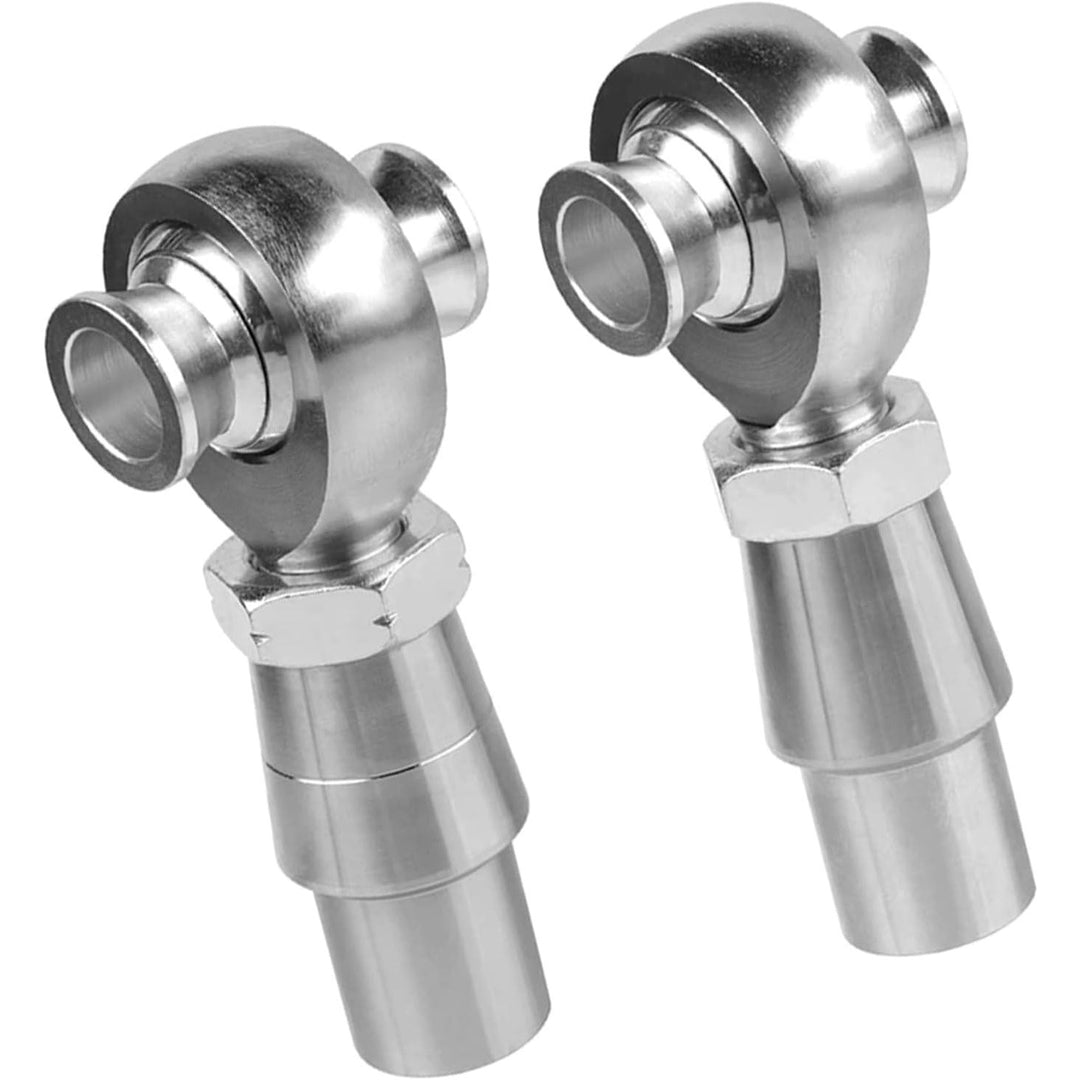

Pair of 3/4-inch rod end joints with adapters, jam nuts and spacers

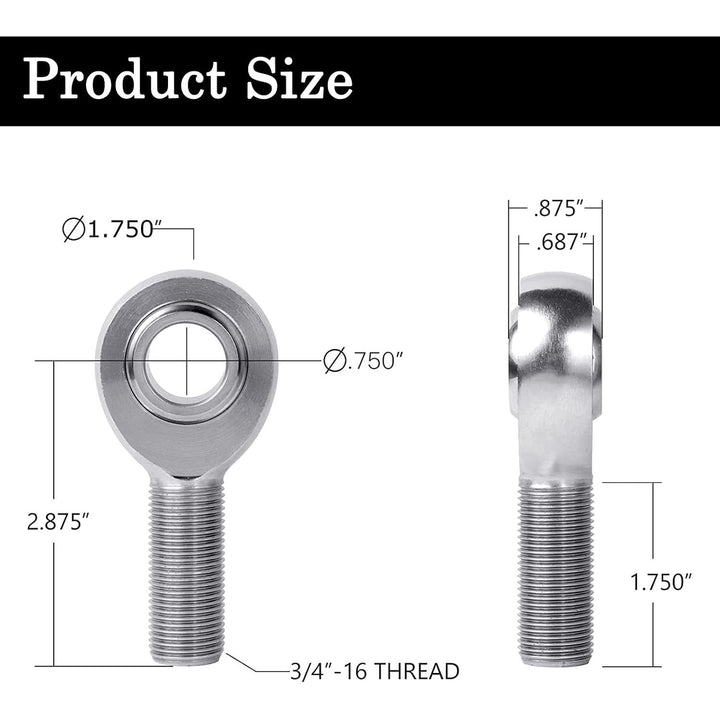

3/4-inch bore and 3/4-16 thread rod end dimensions

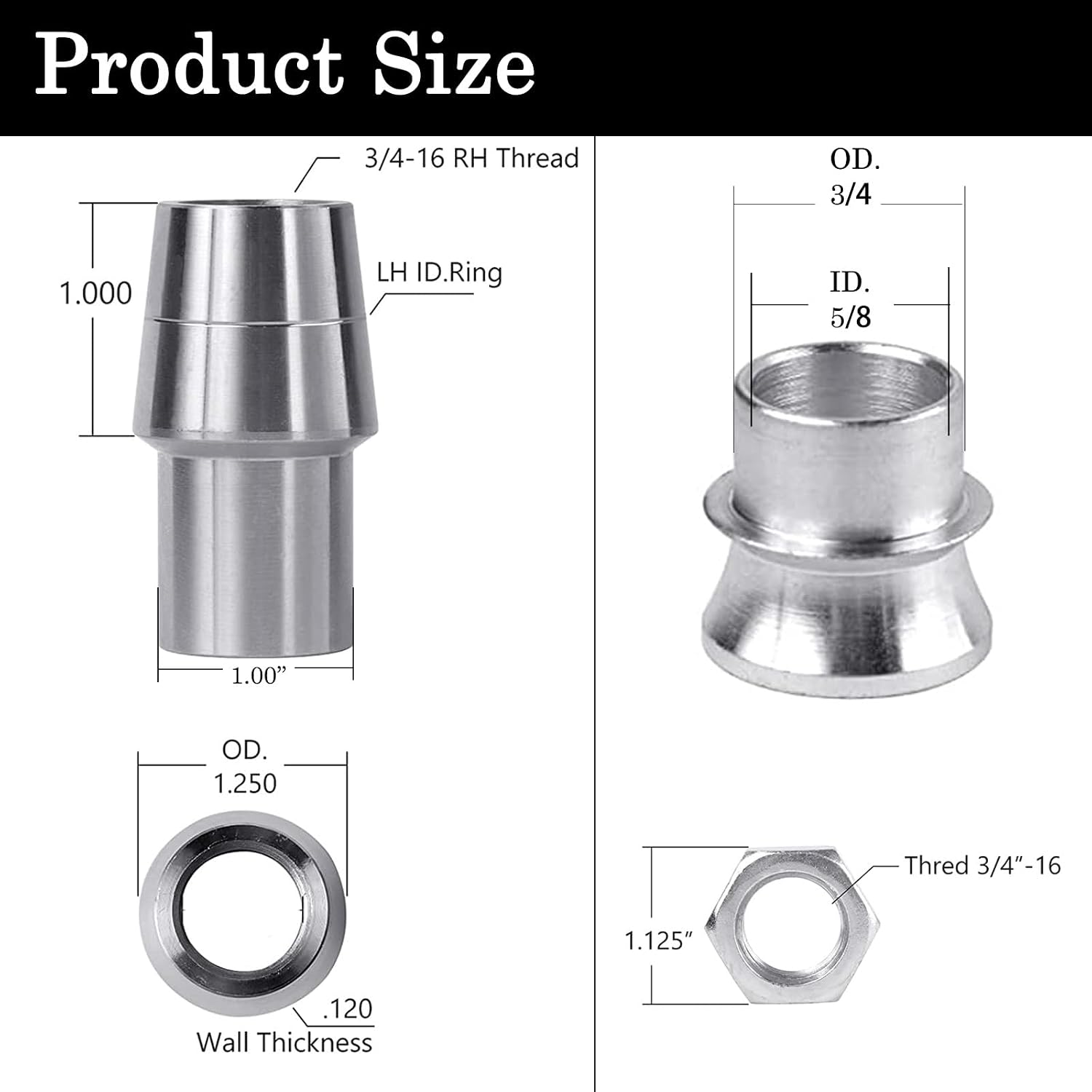

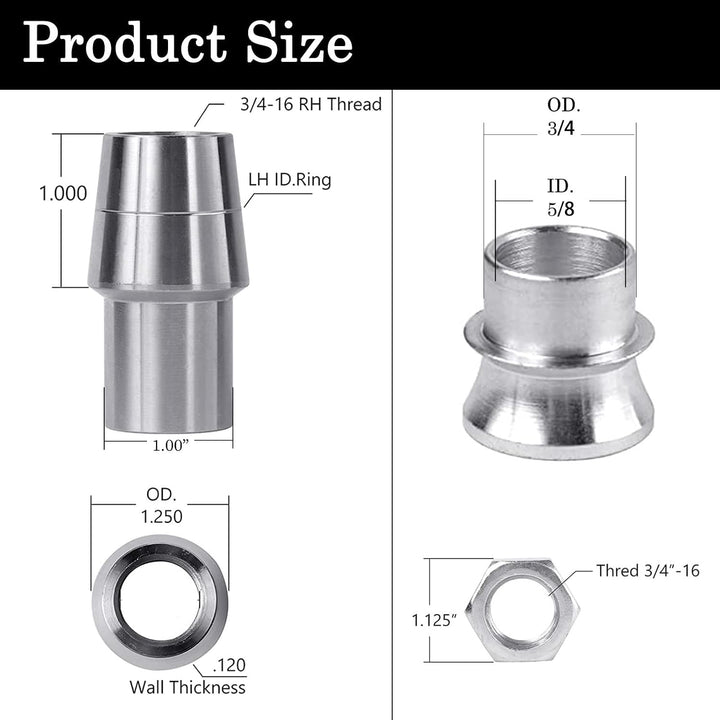

3/4-inch rod end kit tube adapter, spacer and jam nut dimensions

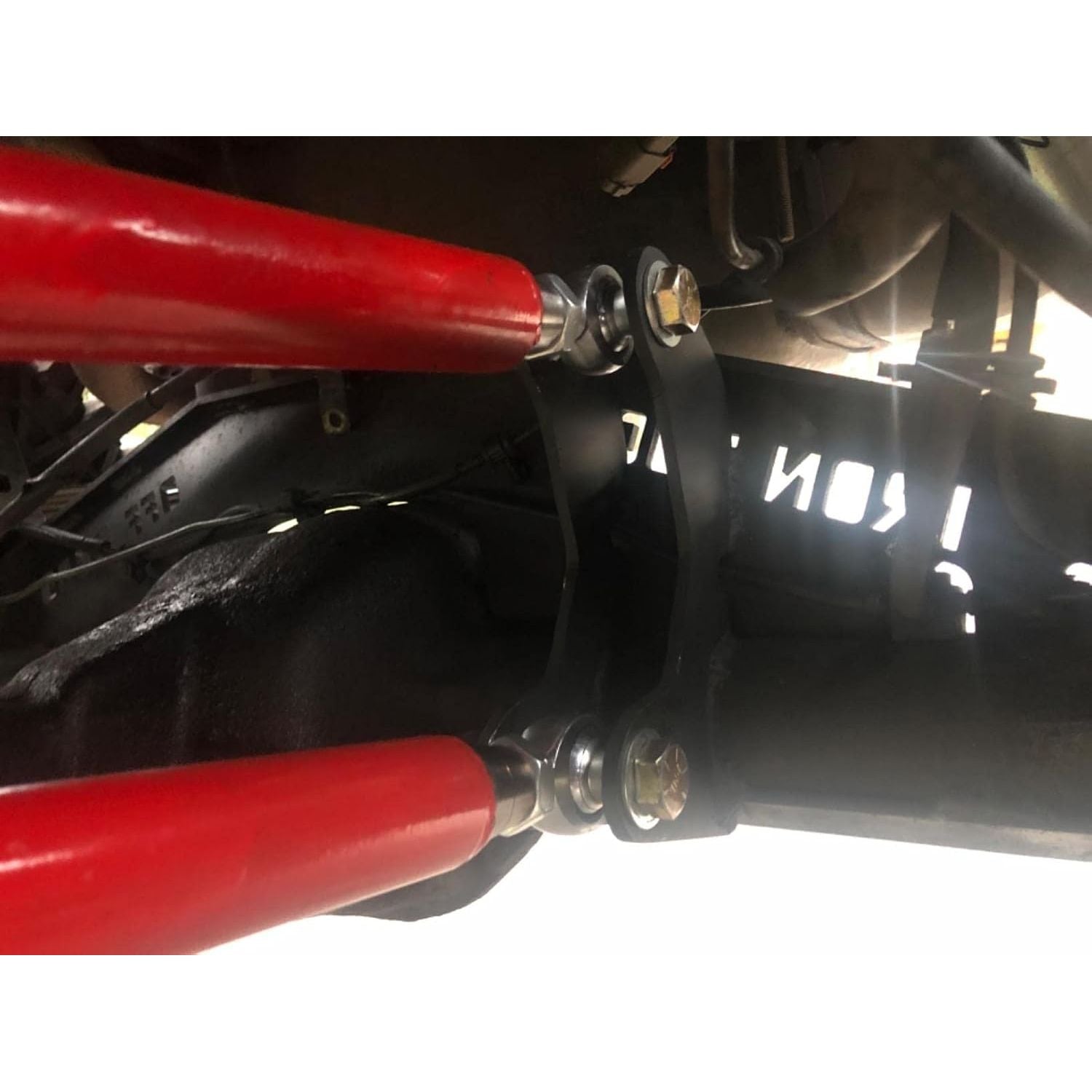

Rod end joint suspension application example; bars and vehicle parts not included
Pair of 3/4-inch rod end joints with adapters, jam nuts and spacers
3/4-inch bore and 3/4-16 thread rod end dimensions
3/4-inch rod end kit tube adapter, spacer and jam nut dimensions
Rod end joint suspension application example; bars and vehicle parts not included

3/4-Inch Chromoly Rod End Joint Kit – Right & Left-Hand Pair

J10695

  • Low stock - 7 items left
  • Backordered, shipping soon
$50.76 $25.38 Save 50%
/
Shipping calculated at checkout.

All orders ship within 24 business hours.

Pickup available Monday to Friday by appointment only.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Pair of 3/4-inch chromoly rod end joints for compatible custom linkage, panhard bar and suspension projects.

  • One right-hand and one left-hand threaded rod end
  • 3/4-inch bore and 3/4-16 threads
  • Includes matching jam nuts, spacers and tube adapters
  • Heat-treated, chrome-plated rod ends with zinc-coated hardware
  • Tube fit: approximately 1-1/4 inch outside diameter with 0.120-inch wall

Confirm all dimensions and engineering requirements for your application. Bars, tubing, bolts and vehicle parts shown in application photos are not included.
